Automated Table Extraction from Financial Documents Using Transformer Models
The Problem
Financial documents are dense with tabular data balance sheets, income statements, cash flow tables, broker confirmations. Getting that data into a usable format has historically required either manual entry or brittle template-based parsers that break whenever a vendor changes their invoice format. A misread number in a financial document isn't an inconvenience; it's a compliance risk or an accounting error.
NEO autonomously built a pipeline that handles this automatically. It detects tables, extracts cell-level text, reconstructs the structure, and validates the output with explicit uncertainty signaling.
The Challenge with Financial Tables
Financial tables are harder than they look. You're dealing with scanned documents at varying resolutions, PDFs generated from different software systems, rotated pages, header rows spanning multiple columns, and cells containing formatted numbers with thousands separators, currency symbols, and parenthetical negatives.
The system handles this complexity while being explicit about uncertainty. Every output includes confidence scores, and anomalies are flagged rather than silently passed through.

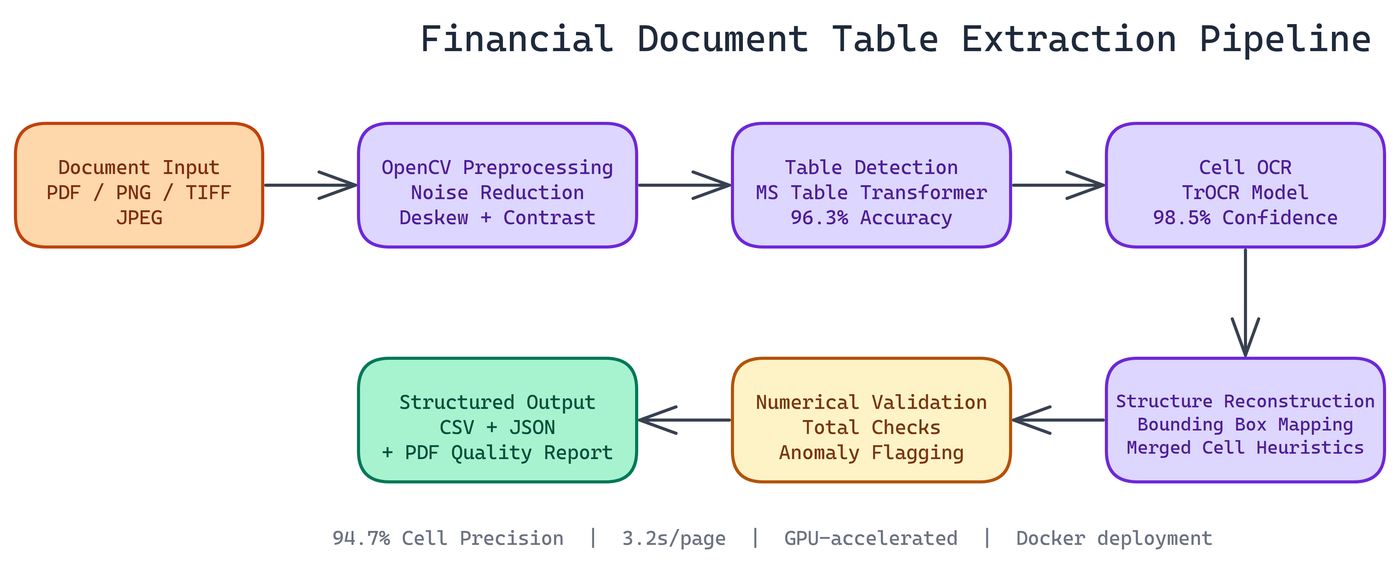

Pipeline Architecture
The extraction process runs through six stages, each handling a specific part of the problem.
Document Preprocessing with OpenCV
Before any ML model sees the document, the pipeline cleans it up. OpenCV handles noise reduction, contrast enhancement, and deskewing. Documents scanned at a slight angle get rotated back. Documents with speckling or compression artifacts get smoothed.
This preprocessing step has a significant effect on downstream accuracy. A table detector trained on clean images will underperform on degraded scans without input normalization.
Table Detection with Microsoft Table Transformer
The pipeline uses Microsoft's Table Transformer model to locate table boundaries within the document. This model was trained specifically on document images and understands the visual structure of tables including borders, ruling lines, and the absence of explicit borders in borderless tables.
The model outputs bounding boxes for each detected table and classifies structural elements: column headers, row headers, and data cells. This structural understanding is what lets us reconstruct tables correctly rather than extracting text in reading order.
The pipeline achieves 96.3% table detection accuracy across the documents NEO has tested.
Cell-Level OCR with TrOCR
Once the table structure is identified, the pipeline crops each cell and runs TrOCR against it. TrOCR is a transformer-based OCR model that handles handwriting, printed text, and the mixed-quality text common in scanned financial documents.
The pipeline achieves 98.5% average OCR confidence across tested datasets. The cell-by-cell approach keeps OCR errors isolated: a bad read on one cell doesn't corrupt adjacent cells.
Data Reconstruction and Validation
After OCR, the pipeline reconstructs the full table structure using bounding box coordinates from the Table Transformer output. Row and column assignments are computed from spatial overlap, with light heuristics to handle merged cells.
The validation layer checks for numerical consistency. Totals should equal the sum of their rows. Year-over-year columns should have the same number of rows. Percentage columns should stay within expected ranges. When something fails validation, the pipeline flags it with a specific error type rather than passing bad output downstream.
Cell extraction precision is 94.7%, with average processing speed at 3.2 seconds per page.
Output Formats
The pipeline writes results in three formats:
- CSV for direct import into spreadsheets or databases
- JSON with full metadata including confidence scores and cell coordinates
- PDF quality report with annotated visualizations showing detection results and flagged anomalies
The JSON output is particularly useful for downstream applications. You get the extracted data plus spatial metadata, so you can trace any value back to its exact location in the source document.
Multi-Format Input Support
The pipeline handles PDFs, scanned document images, and raster formats (PNG, TIFF, JPEG). PDFs with embedded text layers get text extracted directly for cells where possible, using OCR only as a fallback for image-only PDFs. This improves accuracy and speed for digitally-generated documents.
Deployment
The system ships as a Docker container for consistent deployment across environments. Scaling is straightforward: run multiple container instances behind a load balancer, with a job queue feeding documents to each worker.
For organizations processing high volumes of documents, GPU acceleration cuts per-page processing time significantly. The TrOCR inference step is the main bottleneck and scales well with GPU parallelism.
Where This Gets Useful
The immediate use case is financial statement analysis: pulling tables from annual reports, earnings releases, SEC filings, and audit documents into structured databases. The same pipeline handles regulatory submissions, insurance schedules, and any domain where tabular data appears in PDF or scanned form.
Analysts who previously spent hours manually transcribing tables can run this pipeline in minutes and focus on the actual analysis.
How to Build This with NEO
Open NEO in VS Code or Cursor and describe what you want to build. A good starting prompt for this project:
"Build a Python pipeline that extracts structured tables from PDFs and scanned financial documents. Use OpenCV for deskewing and contrast enhancement, Microsoft Table Transformer from HuggingFace to detect table boundaries and classify row/column headers, and TrOCR for cell-level OCR. Reconstruct table structure from bounding box coordinates, handle merged cells, and run a numerical validation pass that checks column totals against row sums and flags percentage columns outside expected ranges. Output CSV, JSON with cell coordinates and confidence scores, or an annotated PDF report. Support both single files and directory batch processing."
NEO generates the six-stage pipeline, numerical validation logic, and Docker configuration. From there you iterate -- ask it to add embedded text layer extraction for digitally generated PDFs to skip OCR where possible, add multi-table detection for pages containing more than one grid, or add a --output-format report mode that annotates the source PDF with bounding boxes and flagged anomalies.
To run the finished project:
git clone https://github.com/dakshjain-1616/Table-Extraction-from-Financial-Documents
cd Table-Extraction-from-Financial-Documents
pip install -r requirements.txt
python extract.py --input ./samples/annual_report.pdf --output-format json
The JSON output includes per-table cell coordinates, extracted text, OCR confidence scores, and a validation section flagging numerical inconsistencies -- ready to pipe into any downstream analysis workflow.
NEO built a financial table extraction pipeline where Microsoft Table Transformer detection, TrOCR cell-level OCR, and numerical consistency validation together deliver 96%+ accuracy on PDFs and scanned documents with explicit uncertainty signaling rather than silent errors. See what else NEO ships at heyneo.com.
