Screenshot2SQL: From Visual Table Data to SQL Schema in One Command

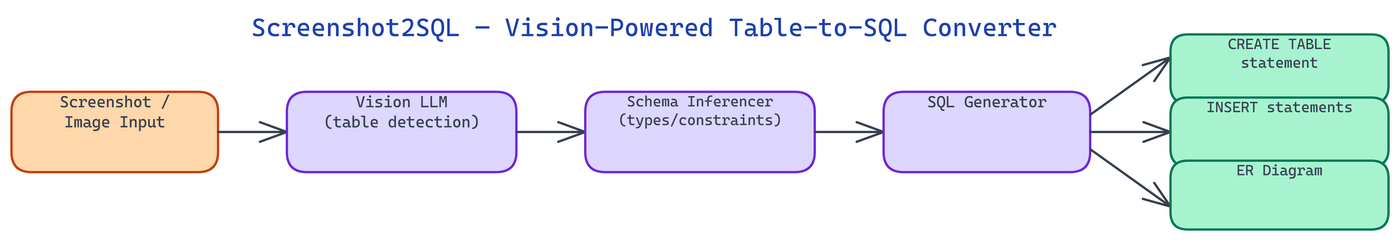

Pipeline Architecture

The Problem

Data engineers regularly encounter the same frustrating situation: a stakeholder shares a screenshot of a spreadsheet, a database table from a legacy system, or a web app data grid and asks you to load the data into your database. The data exists visually but not digitally. Manually transcribing column names, inferring types, and writing CREATE TABLE statements is tedious, error-prone, and completely automatable.

NEO built Screenshot2SQL to make this a one-command operation. Pass a screenshot, get back a complete SQL schema with INSERT statements, ready to execute.

Vision LLM Parsing

The core of Screenshot2SQL is a vision LLM pipeline that understands tabular data in images. The tool sends the screenshot to a vision model (GPT-4o Vision, Claude 3.5 Sonnet, or Gemini 1.5 Pro, depending on configuration) with a structured prompt that asks it to identify table boundaries, extract column headers, enumerate all visible rows, and reason about data types from the values it sees.

The vision prompt is carefully engineered for tabular extraction. It instructs the model to preserve exact column naming (including spaces, capitalization, and special characters), identify whether a row is a header or data row, handle merged cells by inferring the appropriate column for each cell's value, and flag any cells where the value is ambiguous or illegible.

The model's response is structured as a JSON object: a list of column descriptors (name, apparent type, sample values, nullability inference) and a list of row objects mapping column names to cell values. This structured output feeds directly into the schema inference stage without any unstructured text parsing.

Schema Inference

Given the extracted column descriptors and data rows, Screenshot2SQL's schema inference engine determines the SQL type for each column.

The inference logic applies a hierarchy of type tests. Integer detection checks whether all non-null values in the column parse as integers within a configurable range. Float detection catches numeric columns with decimal points. Date and datetime detection uses a library of format patterns covering ISO 8601, US date formats, European date formats, Excel serial date numbers, and several dozen common representations. Boolean detection catches columns whose values are exclusively from a set like {true, false}, {yes, no}, {1, 0}, {Y, N}.

Columns that do not match any specialized type fall back to VARCHAR(n) where n is determined by the maximum observed string length with a configurable headroom multiplier (default 1.5x to allow for values not visible in the screenshot).

Constraint inference runs as a second pass. Primary key detection looks for columns named id, *_id, or columns with all unique values and no nulls these get PRIMARY KEY with NOT NULL. Foreign key suggestions are generated for columns that appear to reference another table based on naming patterns like user_id, product_id, or order_id. These are emitted as comments rather than constraints, since the referenced table may not exist in the current session.

Unique constraint inference detects non-primary columns with all distinct values. Not-null inference marks columns with no empty cells as NOT NULL.

SQL Output Formats

Screenshot2SQL generates output in two forms: a CREATE TABLE statement and a batch of INSERT statements.

The CREATE TABLE statement includes the inferred column names with properly escaped identifiers (backtick-quoted for MySQL, double-quote-quoted for PostgreSQL and SQLite), data types with appropriate lengths and precision, and all inferred constraints. The dialect is configurable via a --dialect flag supporting MySQL, PostgreSQL, SQLite, and SQL Server.

The INSERT statements are generated as a single multi-row insert for efficiency INSERT INTO table_name (col1, col2, ...) VALUES (row1), (row2), ... with values properly escaped for the target dialect. String values are single-quoted with internal quotes escaped. NULL values are emitted as SQL NULL rather than empty strings. Date values are formatted in the ISO 8601 format appropriate for the target dialect.

An optional --upsert flag generates INSERT ... ON CONFLICT DO UPDATE (PostgreSQL) or INSERT ... ON DUPLICATE KEY UPDATE (MySQL) syntax instead of plain inserts, which is useful when loading data into a table that may already have some of the rows.

Handling Complex Layouts

Real-world screenshots are messier than clean spreadsheet exports. Screenshot2SQL handles several common complications.

Multi-table screenshots: Some screenshots contain multiple distinct tables or data grids. The tool detects visual boundaries between tables and generates a separate SQL output block for each, naming them table_1, table_2, and so on with a suggestion to rename based on visible headers or titles.

Rotated or skewed screenshots: Mobile screenshots, scanned documents, and photos of screens often have slight rotation. Screenshot2SQL applies a pre-processing step that detects and corrects tilt before passing the image to the vision model.

Partial columns: Wide tables that extend beyond the screenshot edge are handled by noting the truncation in a comment and omitting values for the cut-off columns rather than generating corrupt partial data.

Numeric formatting: Numbers formatted with thousands separators (1,000,000) or currency symbols ($42.50) are correctly parsed to their numeric values rather than treated as strings.

Workflow Integration

Screenshot2SQL is designed to fit into existing data engineering workflows. The CLI accepts a file path or a URL pointing to an image. Standard output is the SQL text, which can be piped directly into psql, mysql, or sqlite3. A --output flag writes to a file instead. A --dry-run flag prints the inferred schema as a human-readable table without generating SQL, useful for reviewing the type inference before committing.

A Python library interface is also available for integration into data pipeline scripts. Pass an image path and get back a structured object containing the table name, column definitions, and rows from which you can generate any output format you need.

How to Build This with NEO

Open NEO in VS Code or Cursor and describe what you want to build. A good starting prompt for this project:

"Build a Python CLI tool that accepts a screenshot of a table, spreadsheet, or data grid and generates executable SQL. Use GPT-4o Vision to extract column headers, data rows, and infer types from visible values. Apply a type hierarchy: integers, floats, ISO dates, UUIDs, booleans, then VARCHAR with 1.5x length headroom. Infer PRIMARY KEY, NOT NULL, and UNIQUE constraints. Generate a CREATE TABLE statement and a batched multi-row INSERT, supporting postgresql, mysql, sqlite, and sqlserver dialects via a --dialect flag."

Build with NEO →

NEO generates the vision pipeline, type inference logic, and SQL emitter. From there you iterate ask it to add an --upsert flag for INSERT ON CONFLICT syntax, add multi-table detection for screenshots containing more than one grid, or add a --dry-run mode that prints the inferred schema without generating SQL.

To run the finished project:

git clone https://github.com/dakshjain-1616/screenshot2sql
cd screenshot2sql
pip install -r requirements.txt
export OPENAI_API_KEY=sk-...
python screenshot2sql.py --input ./samples/invoice_table.png --dialect postgresql

Drop any screenshot of a table on it and get back ready-to-execute SQL CREATE TABLE with constraints and a batched INSERT for all visible rows.

NEO built Screenshot2SQL to eliminate one of the most tedious recurring tasks in data engineering taking visual table data and turning it into executable SQL with zero manual transcription. See what else NEO ships at heyneo.com.
