kg-extract: Build a Queryable Knowledge Graph from Any Document

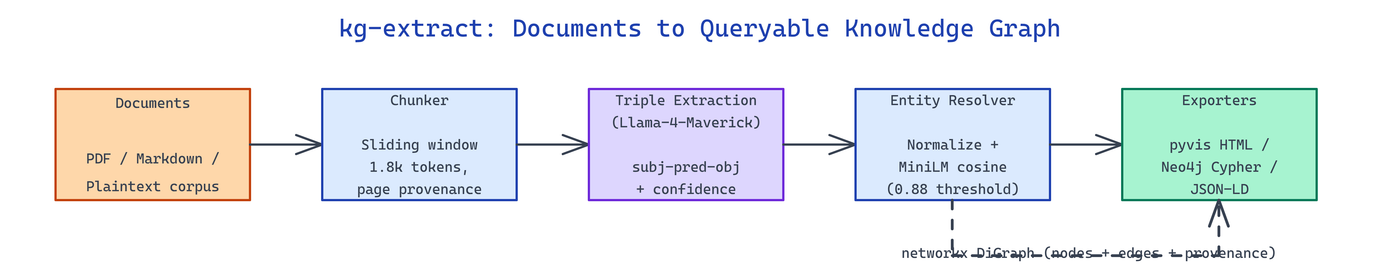

Pipeline Architecture

The Problem

Teams sitting on thousands of PDFs and internal docs can't query relationships - "which products shipped with which regulators on which dates?" - without reading everything manually or training a bespoke NER pipeline.

NEO built kg-extract to turn any pile of documents into a queryable knowledge graph using LLM-driven triple extraction and fuzzy entity resolution.

Multi-Format Ingestion and Chunking

kg-extract accepts PDFs via pdfplumber, markdown via native parsing, and plain text. Each document is chunked with a sliding window that respects paragraph boundaries and tracks (document_id, page, char_offset) metadata on every chunk so the final graph preserves source provenance. Tables inside PDFs are extracted separately and passed through a specialized prompt that flattens cells into (row_entity, column_predicate, cell_value) triples.

from kg_extract import Extractor

extractor = Extractor(model="meta-llama/llama-4-maverick")
graph = extractor.ingest([
    "docs/annual_report_2024.pdf",
    "docs/product_specs.md",
    "docs/compliance_notes.txt",
])

Chunk size defaults to 1,800 tokens with a 200-token overlap - enough to capture multi-sentence relationships without truncating mid-claim.

LLM Triple Extraction and Entity Resolution

Each chunk goes to Llama-4-Maverick (via OpenRouter) with a prompt that forces JSON output of {subject, predicate, object, confidence} tuples and a short evidence snippet. Triples below a configurable confidence threshold are dropped. The extractor runs calls concurrently with an asyncio semaphore tuned to the provider's rate limits.

Raw triples contain duplicate and near-duplicate entities - "OpenAI", "Open AI Inc.", "OpenAI (San Francisco)". kg-extract resolves them with a two-stage fuzzy deduper: character-level normalization and sentence-transformer cosine similarity above a 0.88 threshold, with type-aware grouping so a person named "Apple" doesn't collapse into the company.

Stage	Technique	Purpose
Normalize	Lowercase, strip punctuation, collapse whitespace	Catch formatting variance
Embed	`all-MiniLM-L6-v2` cosine similarity	Catch semantic variance
Cluster	Union-find within entity type	Prevent cross-type merges

The final graph is stored as a networkx DiGraph with edge attributes for predicate, confidence, and source provenance.

Export to Pyvis, Neo4j, and JSON-LD

Three exporters ship with the project. pyvis renders an interactive HTML graph you can pan, zoom, and filter by entity type - useful for exploration with non-technical stakeholders. The Neo4j exporter emits idempotent Cypher MERGE statements so re-runs don't duplicate nodes. JSON-LD output conforms to Schema.org vocabulary where possible and falls back to a project-specific namespace otherwise.

python kg_extract.py \
  --input ./corpus/ \
  --model meta-llama/llama-4-maverick \
  --format pyvis,cypher,jsonld \
  --min-confidence 0.7 \
  --output ./graph_out/

Run time on a 50-document corpus lands around 3-5 minutes depending on provider latency; the graph typically contains 2-5k deduplicated entities and 8-15k edges.

How to Build This with NEO

Open NEO in VS Code or Cursor and describe what you want to build. A good starting prompt for this project:

"Build a knowledge graph extraction pipeline that ingests PDFs, markdown, and text files, chunks them while preserving page-level provenance, uses Llama-4-Maverick via OpenRouter to extract subject-predicate-object triples with confidence scores, deduplicates entities using sentence-transformer similarity with type-aware clustering, and exports the result as interactive pyvis HTML, Neo4j Cypher, and JSON-LD."

Build with NEO →

NEO generates the project structure and core implementation. From there you iterate - add domain-specific entity types, wire it to a vector DB for hybrid retrieval, or build a Streamlit UI that lets SMEs correct extraction errors. Each request builds on what's already there.

To run the finished project:

git clone https://github.com/dakshjain-1616/kg-extract
cd kg-extract
pip install -r requirements.txt
python kg_extract.py --input ./examples/ --format pyvis --output ./graph.html

Open graph.html to explore the extracted entities and relationships; load the Cypher export into Neo4j for structured querying.

NEO built an end-to-end extraction pipeline that transforms unstructured document piles into queryable graphs with verifiable source provenance. See what else NEO ships at heyneo.com.
