Acervo Extractor Qwen3.5 9B GGUF Q4_K_M Quantization Pipeline

View on GitHub

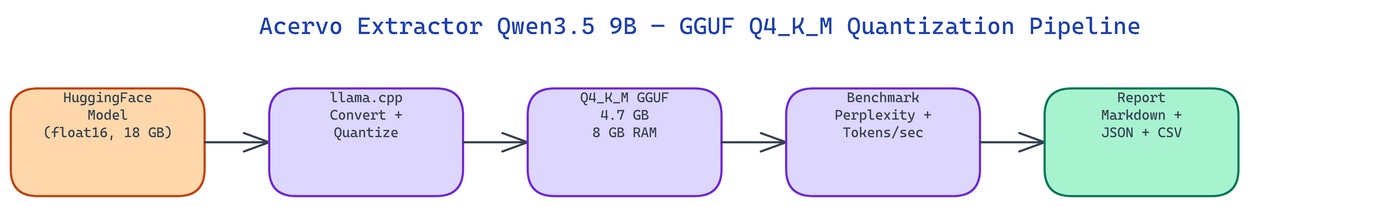

Pipeline Architecture

The Problem

Running a 9B parameter document-extraction model in float16 needs 20 GB of VRAM. Most workstations and consumer GPUs don't have that. Generic quantization guides exist, but they don't ship pre-benchmarked artifacts for specific fine-tuned models with measured quality loss.

NEO built this quantization pipeline to take the SandyVeliz/acervo-extractor-qwen3.5-9b model (built on Qwen3.5-9B) from an 18 GB float16 checkpoint down to a 4.7 GB Q4_K_M GGUF file. The result runs on 8 GB of RAM at 12% higher token throughput than the original.

What Q4_K_M Quantization Does

GGUF quantization is the process of compressing model weights from full precision (float16 or float32) into lower bit-width representations. The Q4_K_M format stores most weights at 4 bits using a K-quant method that groups weights into blocks and applies separate scaling factors per block, which reduces precision loss compared to naive 4-bit rounding.

The tradeoff is explicit and measurable. Q4_K_M cuts file size to 26% of float16 and increases inference speed by 12% on CPU. Perplexity rises by about 6%, which for a document-extraction task is within acceptable limits. Q8_0 is available as a middle ground at 50% of float16 size, 6% faster, and only 1% perplexity loss.

The pipeline builds llama.cpp automatically, converts the HuggingFace weights to an intermediate float16 GGUF, then calls llama-quantize to produce the final compressed file. Both Q4_K_M and Q8_0 outputs are generated in a single run.

Benchmarking with Warmup

Raw inference speed measurements are unreliable without warmup passes. The first few generation calls are slow because memory pages are not yet cached and the CPU branch predictor hasn't warmed up.

benchmark.py runs configurable warmup iterations before timing starts. It records mean latency, p95 latency, and standard deviation per generated token. This gives a stable throughput figure rather than a best-case or worst-case number. The benchmark also computes perplexity on a 100-prompt test set, so you have both quality and speed in one output file.

Results are written to three formats: a Markdown report, a JSON file for programmatic use, and an optional CSV for analysis in spreadsheet tools.

Memory Estimation Before Downloading

The memory_estimator.py module lets you check whether a model fits in your hardware before committing to a multi-gigabyte download. Given the number of parameters and quantization type, it computes peak RAM including KV cache overhead and compares against available system RAM.

from memory_estimator import estimate_memory, recommend_quant, get_available_ram_gb

est = estimate_memory(9.0, "Q4_K_M")
# {'params_b': 9.0, 'quant_type': 'Q4_K_M', 'peak_ram_gb': 5.66, ...}

rec = recommend_quant(9.0, available_ram_gb=get_available_ram_gb())
# 'Q4_K_M'

The auto-recommendation picks the highest-quality quantization tier that fits in your available RAM. On a 28 GB system, for example, it recommends Q4_K_M as the optimal balance between speed and quality for a 9B model.

Multi-Model Comparison

compare.py runs the full benchmark suite across multiple HuggingFace models in one command. Each model gets its own perplexity score, tokens-per-second measurement, and latency statistics. The output is a ranked table showing which model is fastest and which is most accurate.

This is useful for deciding between competing fine-tunes of the same base model before committing to a quantization run.

python compare.py --models SandyVeliz/acervo-extractor-qwen3.5-9b,Qwen/Qwen3-8B

The dry-run mode generates synthetic but realistic data without downloading any weights, so you can verify the pipeline and inspect output formats before running on real hardware.

How to Build This with NEO

Open NEO in VS Code or Cursor and describe what you want to build. A good starting prompt for this project:

"Build a quantization and benchmarking pipeline in Python for HuggingFace models using llama.cpp. It should auto-build llama.cpp, convert float16 weights to GGUF, then run llama-quantize to produce Q4_K_M and Q8_0 outputs in one pass. Include a benchmark module with configurable warmup iterations that records mean latency, p95 latency, and perplexity on a 100-prompt test set. Add a memory estimator that computes peak RAM including KV cache overhead and recommends the best quantization tier for the user's available RAM."

Build with NEO →

NEO generates the project structure and core implementation from that. From there you iterate ask it to add a multi-model comparison runner that ranks by tokens-per-second and perplexity, build out the dry-run mode with synthetic benchmark data, or add CSV and JSON export formats for the benchmark results. Each request builds on what's already there without re-explaining the context.

To run the finished project:

git clone https://github.com/dakshjain-1616/acervo-extractor-qwen3-5-9b-gguf-4-2gb-quantization
cd acervo-extractor-qwen3-5-9b-gguf-4-2gb-quantization
pip install -r requirements.txt
python scripts/demo.py --dry-run --export-csv

Check RAM requirements before a full run with python memory_estimator.py --params 9.0, then quantize with python quantize.py --model SandyVeliz/acervo-extractor-qwen3.5-9b --quant Q4_K_M,Q8_0. GGUF files land in output/ alongside a Markdown benchmark report.

NEO built a complete quantization and benchmarking pipeline for the Acervo Extractor Qwen3.5 9B model, producing a 4.7 GB GGUF that runs on consumer hardware with measured quality and speed tradeoffs. See what else NEO ships at heyneo.com.
